- Fold up to 17,000 sheets per hour
- Choose from 18 pre-programmed fold settings or one of 36 stored custom folds
- C, V, Z, Gate, Fold Out, and Double Parallel folds are pre-programmed
- Handles 3.5” W x 5” H to 12.25” W x 18” H sheets
- Limited 90 Day Manufacturer Warranty
Description

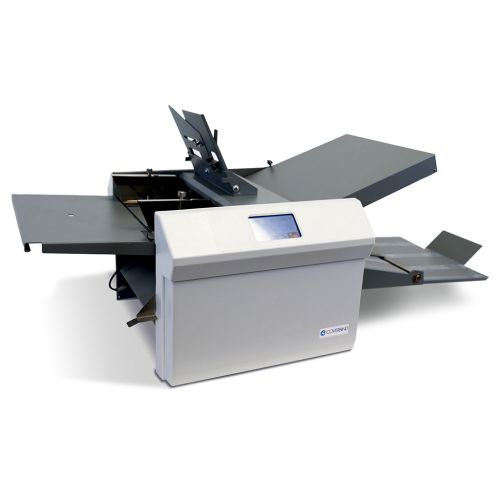

Utilize the Coverbind CBPF480 letter folding machine to revolutionize your paper folding process. It is a powerfully adaptable paper folding machine with up to 36 custom paper folding possibilities and 18 pre-programmed folding options. Additionally, with a 500-sheet loading tray, it can fold up to 17,000 sheets per hour*. It offers pre-set paper sizes for 11", 14", 17", A5, A4, A3, B6, B5, and B4 so you can handle all of the common paper sizes, as well as more unique needs. Pre-set folds are C, V, Z, Gate, Fold Out, and Double Parallel.
The full-color LCD control panel on the Coverbind CBPF480 Folder Machine offers an unsurpassed step-by-step user experience. Users require little instruction to load their paper, choose a paper size and fold type and set the paper folding plates. Additionally, users don't need to wait; after setting up the machine, they may return in a few minutes to find 500 neatly stacked, neatly folded sheets on the telescoping conveyor system. You can fold up to four stapled or unstapled pages simultaneously thanks to the included specialized multi-sheet feeder. The vertical stacker, which can stack up to 22" of perfectly folded pages, is another optional accessory for better productivity and organization. With a 6-digit resettable counter and 8-digit lifetime counter, the Coverbind CBPF480 Automatic Paper Folder gives you complete tracking control of your job progress.
*May vary depending on the operator, paper stock, fold type, and other factors.
Specifications
Item # | 04CBPF480 |
---|---|
Manufacturer | Coverbind |
Manufacturer Part Number | 04CBPF480 |
Model | CBPF480 |
Suggested User | Business, church, school, or print shop |
Paper Size | Minimum 3.5” W x 5” L to Maximum 12.25” W x 18” L |
Feed Type | Friction Feed |
Sheets per Fold | Up to 4 pages** |
Speed | Up to 17,000 per hour* |
Capacity | Up to 500 sheets 20# (75gsm) |
Power Voltage | 110AC 60 Hz |
Certifications | UL & CE applied for |
Color | White |
Dimensions | Closed- 20” W x 33” D x 19” H Extended- 20” W x 60” D x 19” H |
Country of Manufacture | Made in the USA |
Product Weight | 74 lbs. |
Shipping Weight | 104 lbs. |
Shipping Dimensions | 24” W x 30” D x 27” H |
Shipping Method | Freight Truck Required |
Manufacturer’s Warranty | 90 Day Limited Manufacturer’s Warranty |
